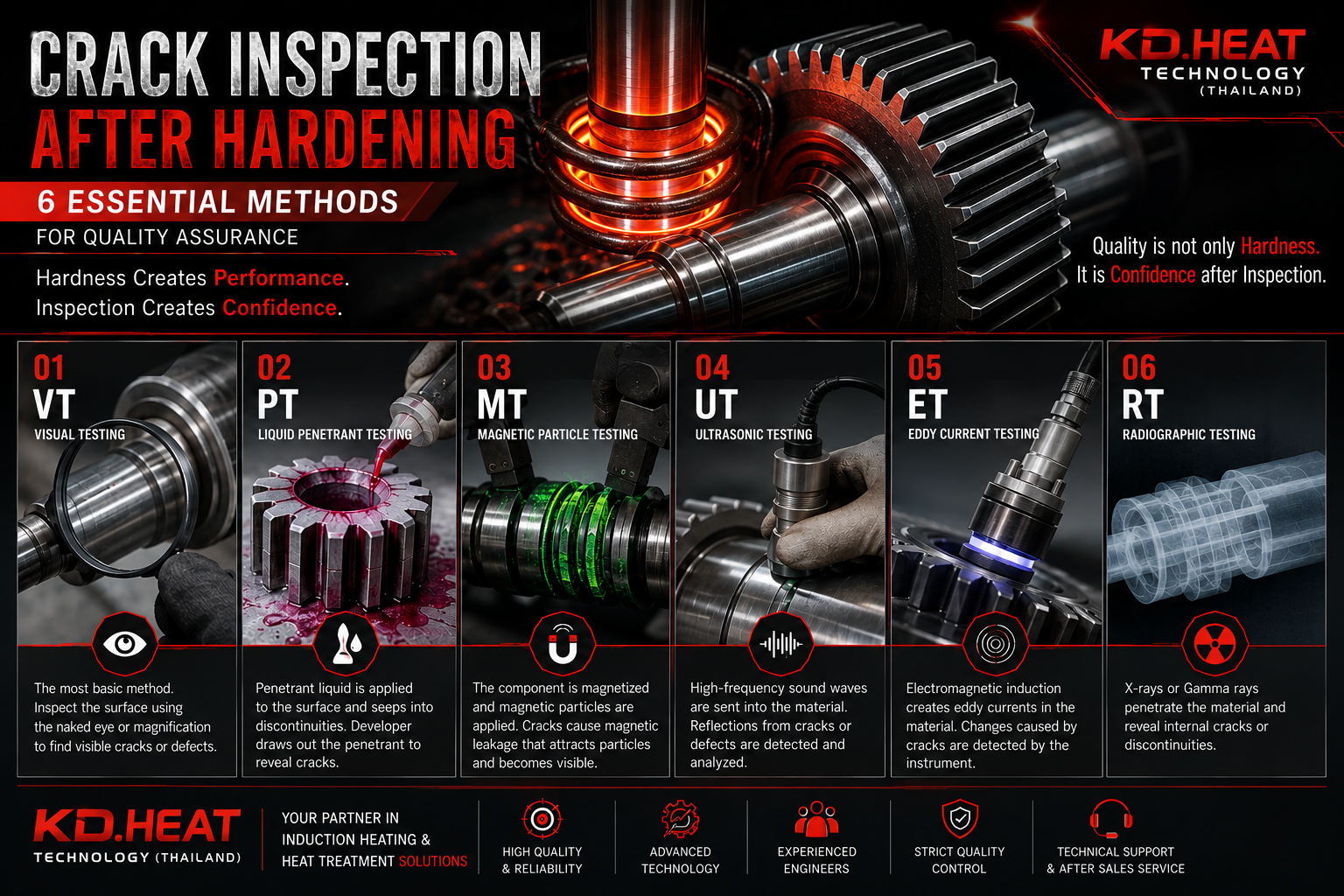

How to Inspect Cracks After Heat Treatment? 6 Common Inspection Methods Used in the Industry

1. Visual Testing (VT)
Visual Testing is the most basic and widely used inspection method.

Inspectors examine the surface of the component using the naked eye, magnifying glasses, or digital inspection equipment to identify visible cracks and surface defects.

Advantages
✔ Fast and simple

✔ Low inspection cost

✔ Immediate evaluation after heat treatment

Limitations
✖ Can only detect surface defects visible to the eye


2. Liquid Penetrant Testing (PT)
Liquid Penetrant Testing is used to detect fine surface-breaking cracks.

A penetrant liquid is applied to the surface and allowed to seep into discontinuities. After removing excess penetrant, a developer is applied to reveal indications of cracks.

Advantages
✔ Detects very small surface cracks

✔ Suitable for complex-shaped components

✔ Applicable to ferrous and non-ferrous materials


3. Magnetic Particle Testing (MT)
Magnetic Particle Testing is one of the most common methods used for hardened steel components.

The component is magnetized and magnetic particles are applied to the surface. Leakage magnetic fields caused by cracks attract the particles, making defects visible.

Advantages
✔ High sensitivity for surface and near-surface cracks

✔ Fast and reliable

✔ Ideal for steel components after induction hardening

Limitations
✖ Applicable only to ferromagnetic materials


4. Ultrasonic Testing (UT)
Ultrasonic Testing uses high-frequency sound waves to detect internal flaws and cracks.

Reflected signals from discontinuities are analyzed to determine the location and size of defects.

Advantages
✔ Detects internal cracks

✔ Non-destructive inspection

✔ Suitable for thick sections

Limitations
✖ Requires skilled operators

✖ Surface preparation may be necessary


5. Eddy Current Testing (ET)
Eddy Current Testing utilizes electromagnetic induction to identify surface and near-surface defects.

It is commonly used for precision components requiring high inspection accuracy.

Advantages
✔ Rapid inspection

✔ High sensitivity

✔ Easily integrated into automated production lines


6. Radiographic Testing (RT)
Radiographic Testing uses X-rays or Gamma rays to inspect internal structures and detect hidden defects.

Advantages
✔ Reveals internal discontinuities

✔ Permanent inspection records can be generated

Limitations
✖ Higher inspection cost

✖ Strict radiation safety requirements


Summary
Crack inspection after heat treatment is essential to ensure product reliability, safety, and performance.

The six most common inspection methods are:

• VT – Visual Testing

• PT – Liquid Penetrant Testing

• MT – Magnetic Particle Testing

• UT – Ultrasonic Testing

• ET – Eddy Current Testing

• RT – Radiographic Testing

For induction hardened components, Visual Testing (VT), Penetrant Testing (PT), and Magnetic Particle Testing (MT) are the most frequently used methods for detecting surface cracks and ensuring quality before delivery.

At KD.HEAT TECHNOLOGY (THAILAND), quality control is an integral part of every heat treatment process. We are committed to delivering reliable, high-quality hardened components that meet customer requirements and industry standards.
